You are on: SUPPORT > CHASSIS SETUP AND SEAT POSITION
CHASSIS SETUP
In rain conditions, we suggest to increase the caster degrees (by using the stub axle eccentric bush on old models).
SEAT POSITION

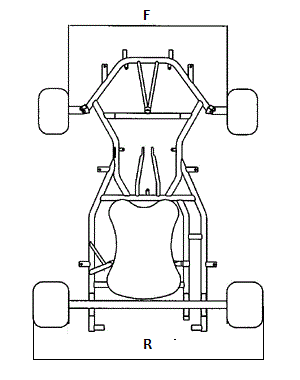

| CHASSIS | Size in cm. | |||
| SLICK | RAIN | |||
| F | R | F | R | |
| MINIKART | 77,5 | max | max | min |
| JUNIOR | 78 | max | max. | min |
| CH20 KF-TAG | 98 | 140 | max | min |
| CH20 KZ | 97 | 139 | max | min |
| CH17 KF-TAG | 97 | 140 | max | min |
| CH17 KZ | 97 | 140 | max | min |
| BRIGGS & STRATTON | 96 | max | max | min |
| EDOX 15-19-20 | 97 | 139 | max | min |
In rain conditions, we suggest to increase the caster degrees (by using the stub axle eccentric bush on old models).

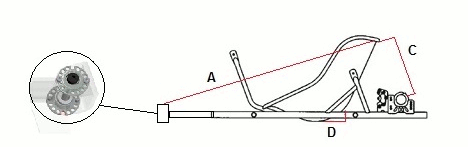

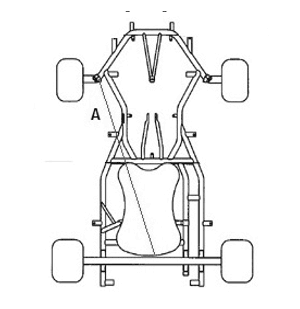

SEAT POSITION
| CHASSIS | Size in cm. | |||
| A | C | D | ||
| MINIKART | 23 | 0,5 | ||
| JUNIOR | 23 | 0,5 | ||
| CH20 KF-TAG | 102,5 | 21 | 0,5 | |
| CH20 KZ | 108 | 19 | 0,5 | |
| CH17 KF-TAG | 102,5 | 21 | 0,5 | |
| CH17 KZ | 106 | 19 | 0,5 | BRIGGS & STRATTON | 102 | 21,5 | 0,5 |
| EDOX 15-19-20 | 106 | 19 | 0,5 | |
