SKIPPER MINI-KART technical data sheet
| Main frame tubing: | Cr-Mo steel 28mm |
| Wheelbase: | 950mm |
| Rear axle: | 25 or 30 Ø mm adjustable in 2 positions L=960mm |
| Braking system: | Runner-CADET |
| Brake lines: | braided steel, silver |
| Brake disk: | self-ventilated rear disk, in cast-iron, 160 mm Ø, 11mm thickness |
| Rear brake caliper: | Black anodized, Runner KZ FR14 |
| Brake pump: | Runner FR14 single-brake master cylinder |

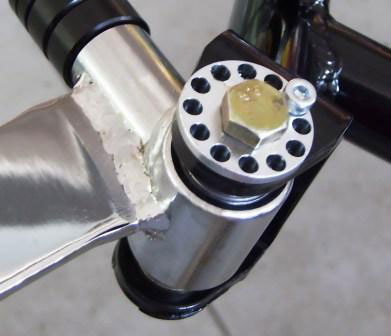

| stub axle: | 17mm., hollow, with 8mm precision ground king-pin bolt |
| Steering wheel: | 320mm, leather with embroidery |
| Wheels: | aluminium, 140-110mm |
| Chassis set up: | front ride height, adjustable Ackerman |
| Features: | exhaust holder bracket with adjustable height and rotation |
| Fuel tank: | 3 lt. |
| Bodywork: | KG, model Panda EV with graphic kit |
| Options at extra charge: |
|
