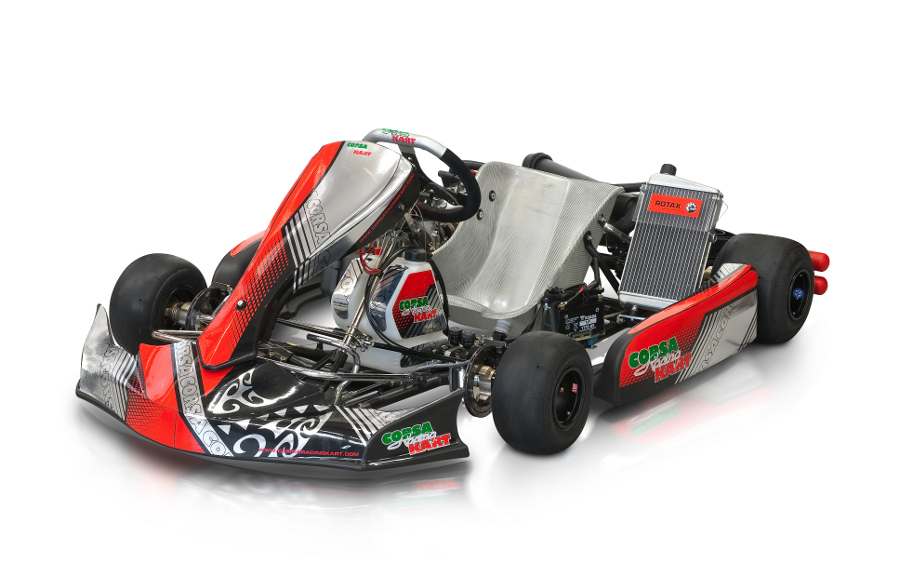

Edox DD2 chassis
EDOX DD2 technical data sheet

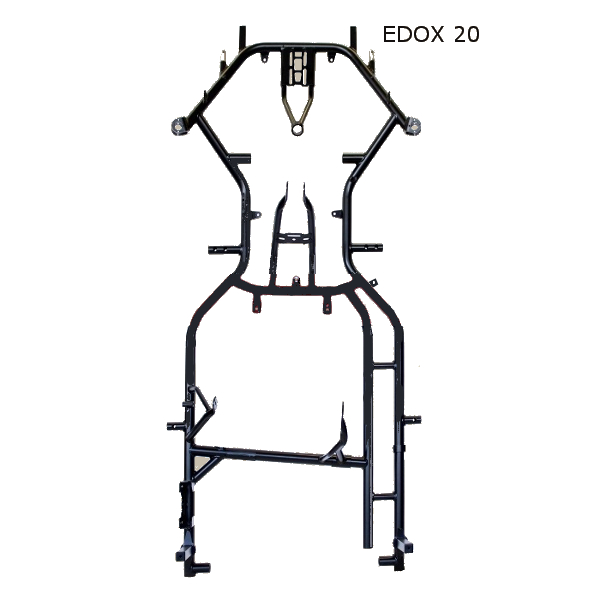

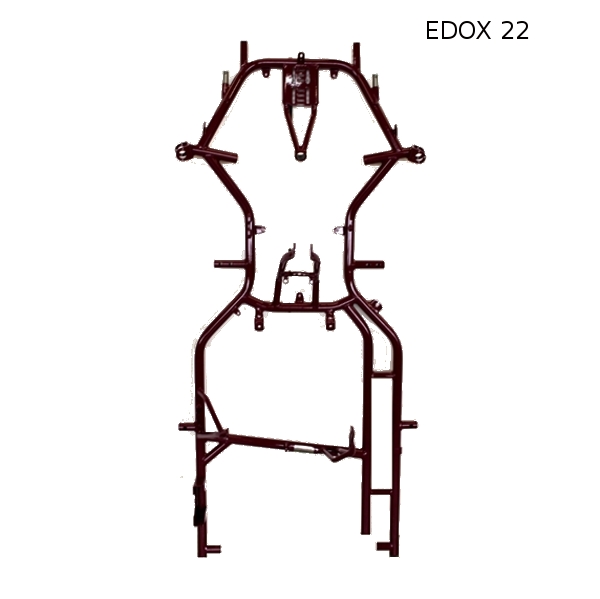

Registration:Rotax EDOX 20 - EDOX 22
Main frame tubing:Cr-Mo steel
Wheelbase:1045 mm

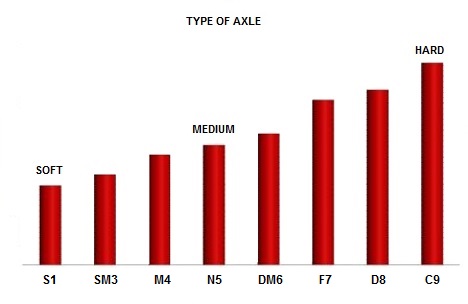

Rear axle:40 Ø mm black with 2 positions adjustable ride height
Braking system:runner (CIK/FIA 014/B4/55)
Brake lines:Braided steel silver
Rear brake disk:Self-ventilated floating rear disk in cast-iron 190mm Ø thickness 16mm

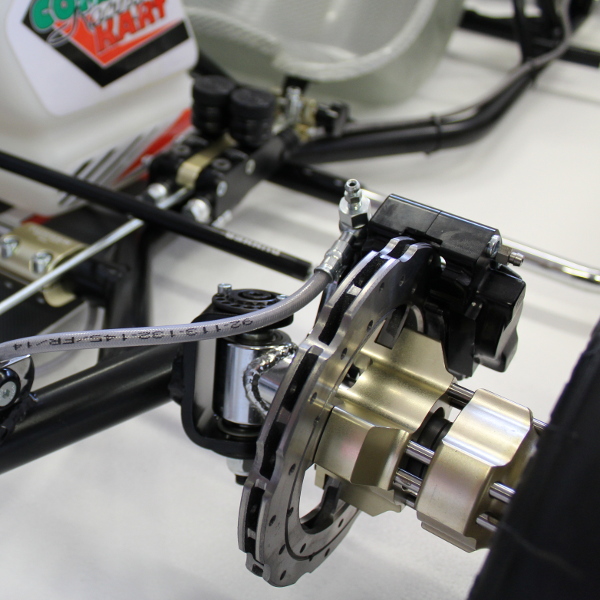

Front brake disk:Self-ventilated in cast-iron Ø 160mm thickness 11mm with front magnesium brake disk carrier

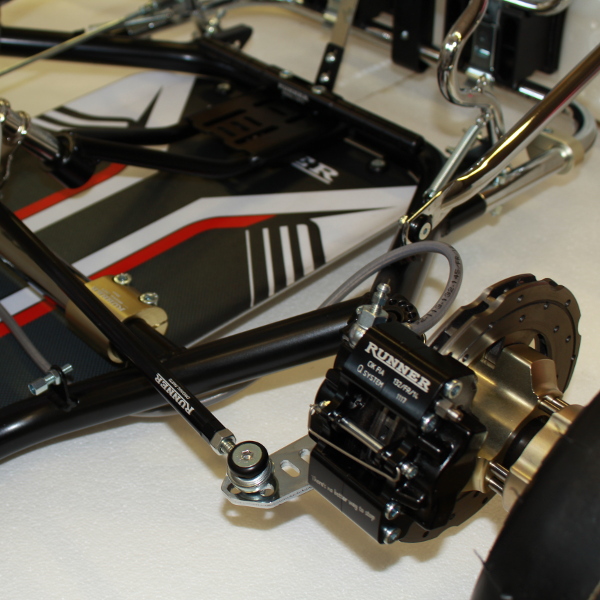

Rear brake caliper:Black anodized special alloy forged caliper 4 pistons, self-adjusting
Front brake calipers:Black anodized special alloy forged caliper 2 pistons, self-adjusting

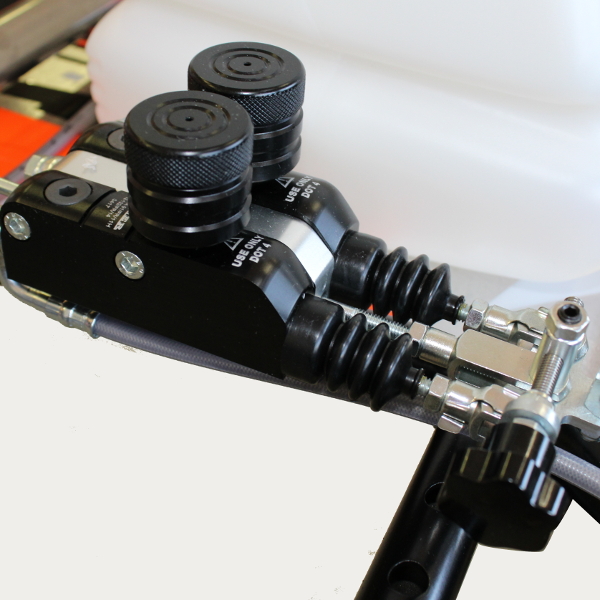

Brake pump:Double-circuit brake master cylinder with aluminium oil recovery tank
stub axle:25mm Ø hollow with 10mm precision ground king-pin bolt
Steering wheel:320mm Ø leather with embroidery
Wheels:Black magnesium wheels low volume 212-132mm
Chassis set up:
  • 16 positions adjustable caster/camber pills
  • Front ride height
  • Adjustable Ackerman
  • Complete front stabilizer
Features:
  • Magnesium accessories
  • Adjustable exhaust holder bracket
  • Axle bearing flange with 5 fixing holes
  • Bearing axle locking adjustment screw
  • Axle locking bush
  • Radiator support

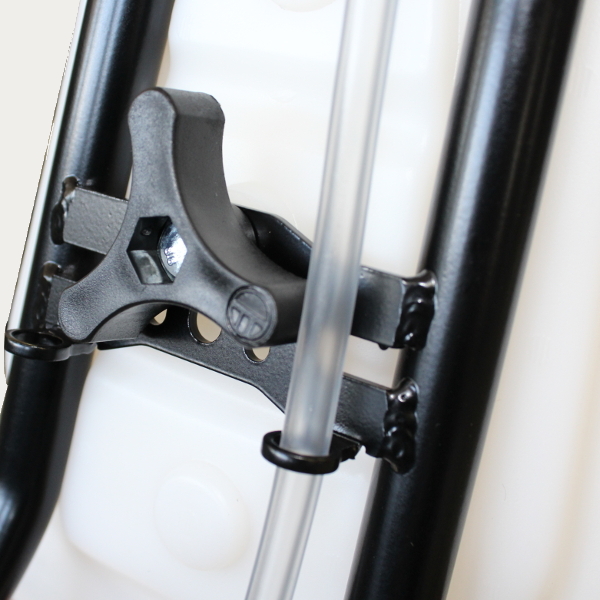

  • Fuel pump support
  • Air filter support
  • Engine mount

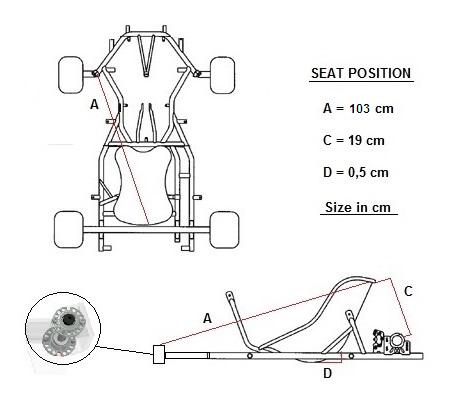

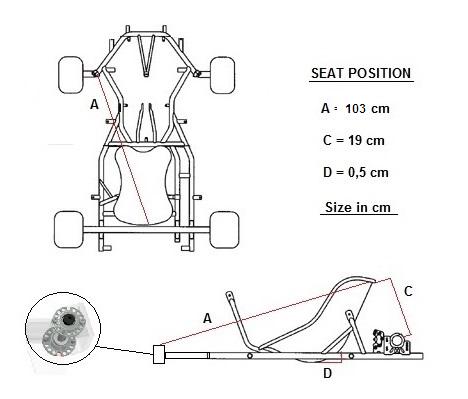

Seat:Flat bottom light weight Silver

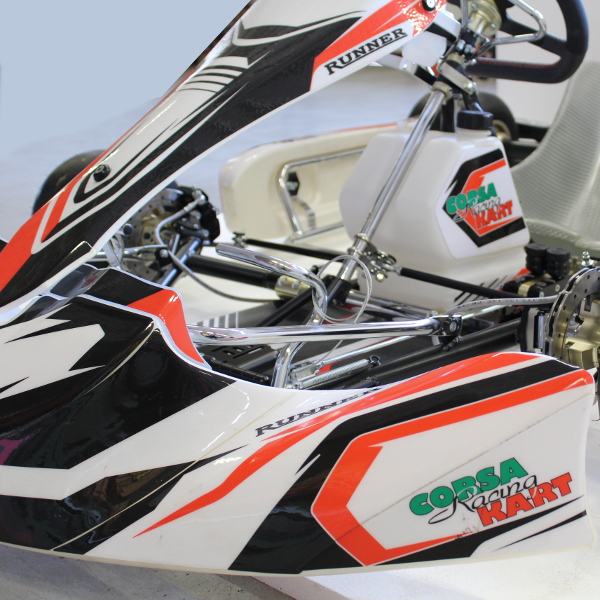

Bodywork:CIK/FIA homologated KG 507/508 Model
Graphics:
  • Complete set, high tickness
  • Antislip floor tray graphic
Options at extra charge:
  • Aluminium pedals
  • Adjustable feet support
  • Rear plastic protection Rotax DD2
  • Side removable bar
  • Rear torsion bar
