CH11 chassis

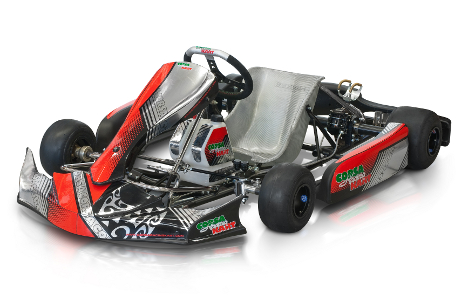

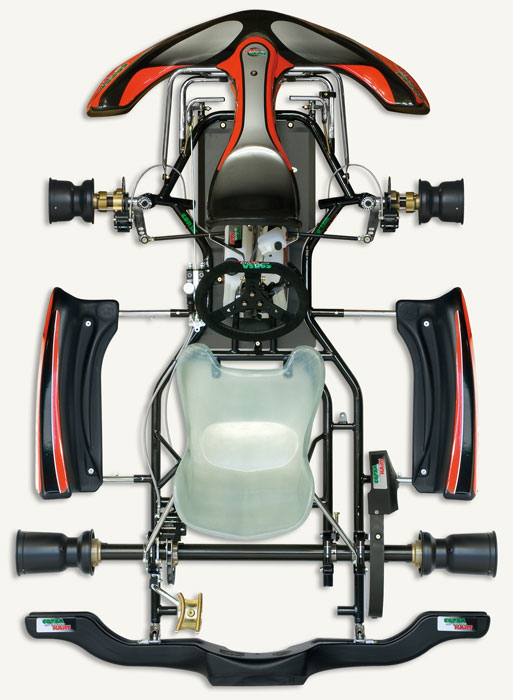

CH14 KF chassis CH14 KF chassis CH14 KF chassis CH14 KF chassis CH14 KF chassis CH14 KF chassis

Download brochure CH14 KF brochure

CH14 KF TAG technical data sheet

HOMOLOGATION:CIK/FIA 90/CH/14

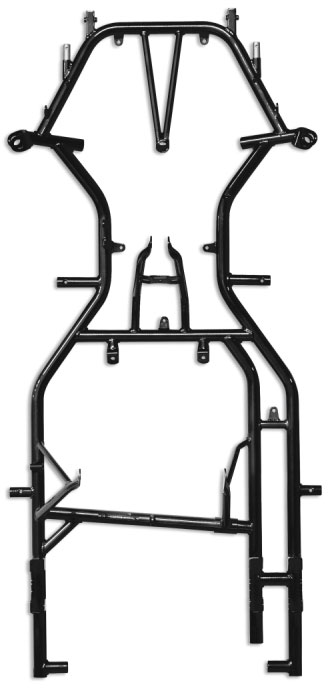

Main frame tubing:Cr-Mo steel 32/30mm
Wheelbase:1040mm
Rear axle:40 or 50 Ø mm, black, with 3 positions adjustable ride height
Braking system:runner (CIK/FIA 92/FR/14)
Brake lines:Braided steel, silver
Brake disk:Self ventilated floating rear disk, in cast-iron, 190mm Ø, thickness 16

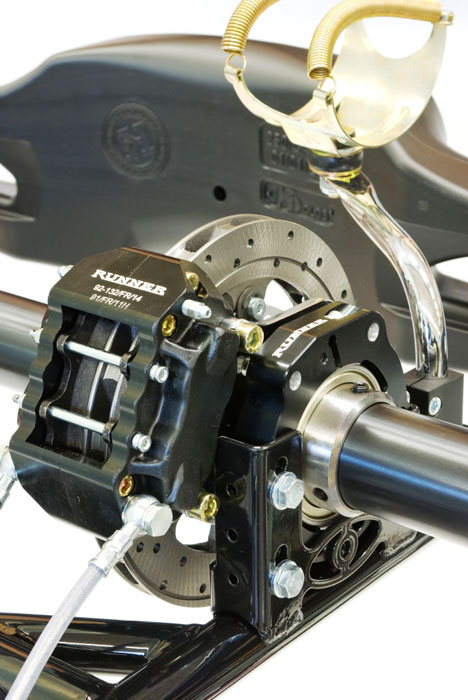

Rear brake caliper:Black anodized, special alloy forged hydraulic caliper, 4 pistons, self-adjusting

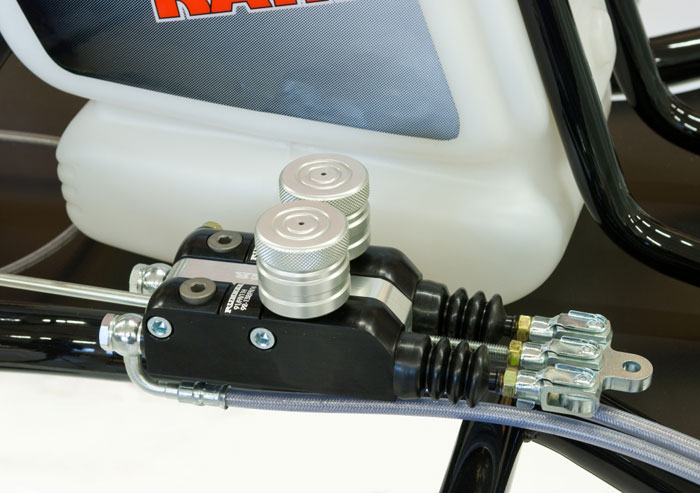

Brake pump:Double circuit brake master cylinder with aluminium oil recovery thank
Stub axle:25mm., hollow, with 10mm precision ground king-pin bolt

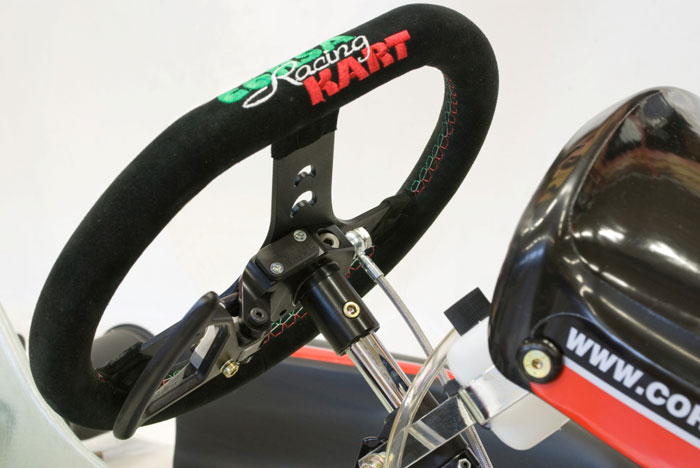

Steering wheel:leather with embroidery
Wheels:Black magnesium wheels, low volume, 212-130mm
Chassis set up:16 positions adjustable caster/camber pills, front ride height, adjustable Ackerman, complete front stabilizer
Features:Magnesium accessories (front wheel hubs, sprocket carrier, brake disk hub, rear wheel hubs) - exhaust holder bracket with adjustable height and rotation - axle bearing flange with 5 fixing holes - bearing axle locking adjustment screw - smooth running axle bearings
Seat:Flat bottom, light weight, clear fiberglass
Bodywork:CIK/FIA homologated
Graphics:Complete set, high tickness
Options at extra cost:
  • rear plastic protection
  • rear torsion bar

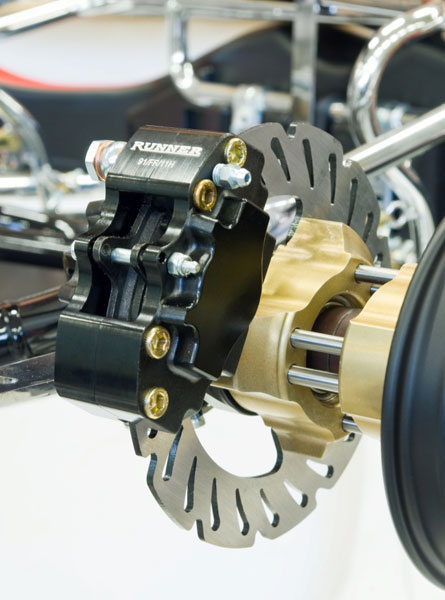

  • front hand bracking system runner 91/FR/11H
  • closed type chain guard
  • magnesium engine mount with clamps
