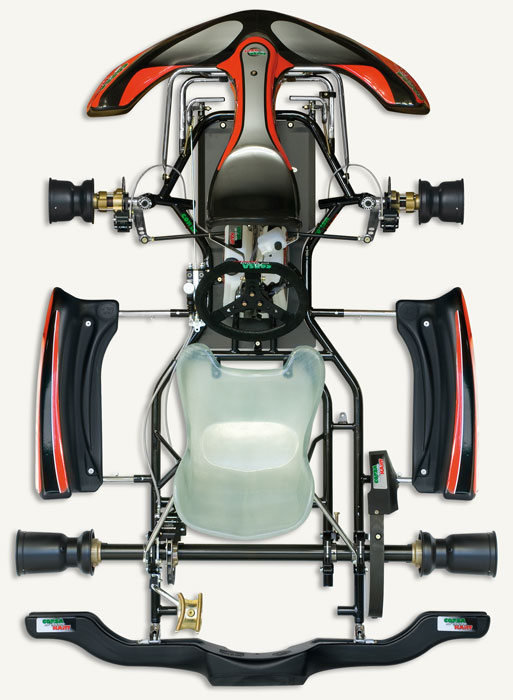

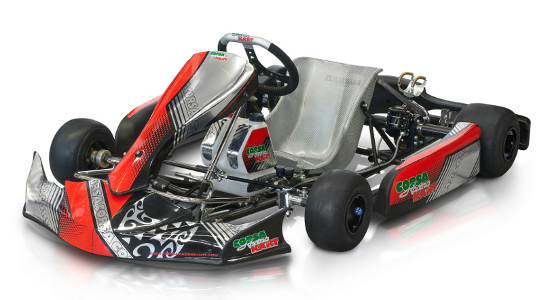

CH11 KF TAG technical data sheet
| HOMOLOGATION: | CIK/FIA 26/CH/11 |

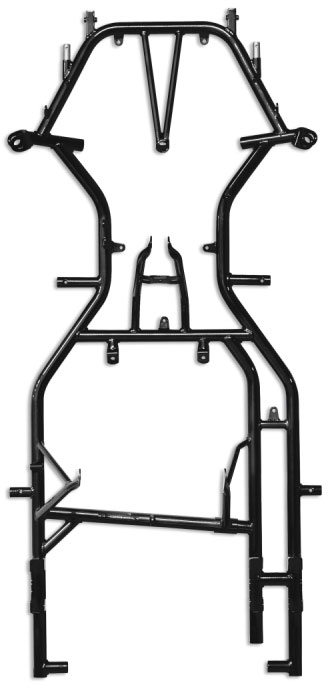

| Main frame tubing: | Cr-Mo steel 30/32mm |
| Wheelbase: | 1040mm |
| Rear axle: | 40 or 50 Ø mm, black, with 3 positions adjustable ride height |
| Braking system: |  (CIK/FIA 92/FR/14) |
| Brake lines: | Braided steel, silver |

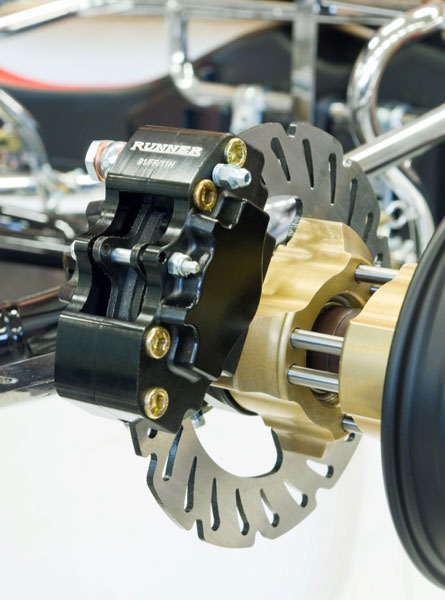

| Brake disk: | Self ventilated floating rear disk, in cast-iron, 190mm Ø, thickness 16 |

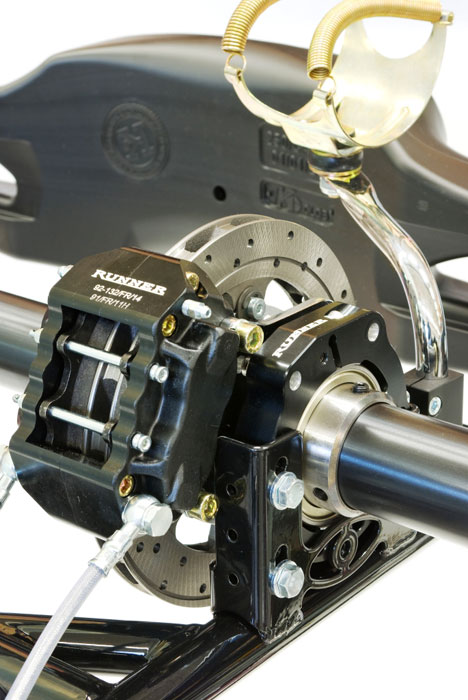

| Rear brake caliper: | Black anodized, special alloy forged hydraulic caliper, 4 pistons, self-adjusting |

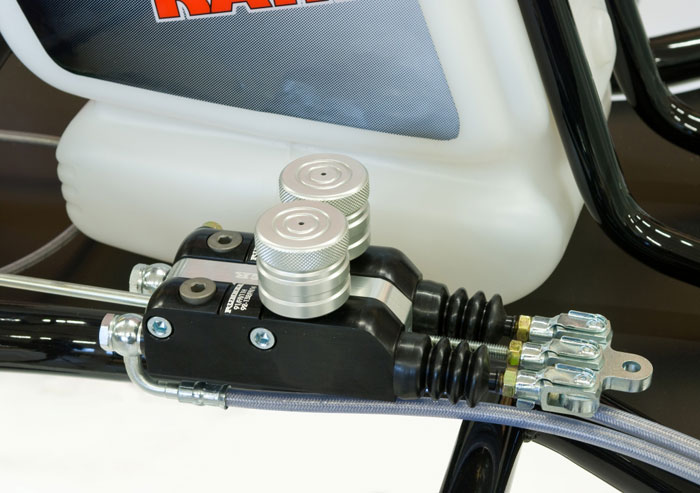

| Brake pump: | Double circuit brake master cylinder with aluminium oil recovery thank |
| Stub axle: | 25mm., hollow, with 10mm precision ground king-pin bolt |

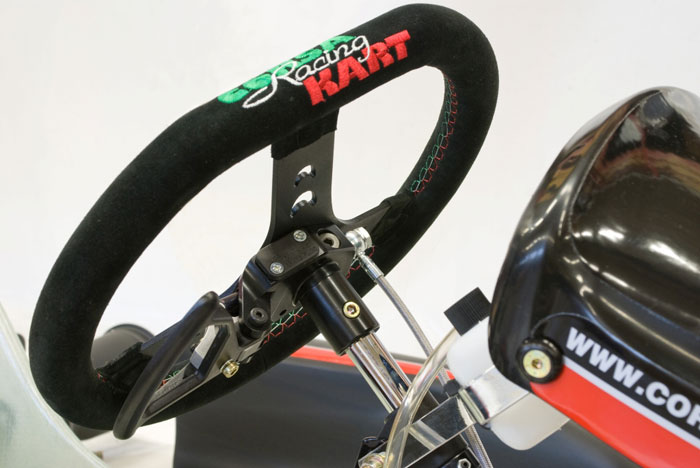

| Steering wheel: | leather with embroidery |
| Wheels: | Black magnesium wheels, low volume, 212-130mm |
| Chassis set up: | 16 positions adjustable caster/camber pills, front ride height, adjustable Ackerman, complete front stabilizer |
| Features: | Magnesium accessories (front wheel hubs, sprocket carrier, brake disk hub, rear wheel hubs) - exhaust holder bracket with adjustable height and rotation - axle bearing flange with 5 fixing holes - bearing axle locking adjustment screw - smooth running axle bearings |
| Seat: | Flat bottom, light weight, clear fiberglass |
| Bodywork: | CIK/FIA homologated |
| Graphics: | Complete set, high tickness |
| Options at extra cost: |
|
